Webhooks and API keys¶
Two ways to connect Evey to other tools without writing a plugin: a webhook sends the server's events to a URL of yours, an API key lets a script call the server as you. Both are created by an administrator in the admin panel; this page is for the person who sets them up and for the person who writes the receiver or the script.
Send events to a URL¶

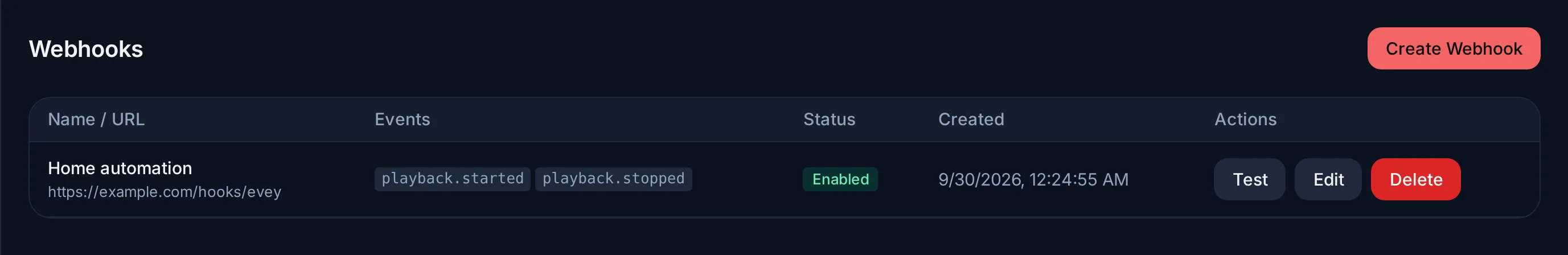

Admin → Webhooks → Create Webhook: a Name, a URL, the Events to send, and an optional Secret for signing. Test sends a ping and reports the answer.
Events. A webhook subscribes to All events or to a chosen list. The form offers every event the server publishes; among them:
| Area | Events |
|---|---|
| Library | library.scan.started, library.scan.completed, media.item.added, media.item.updated, media.item.removed, metadata.refreshed |
| Playback | playback.started, playback.stopped, media.marked.watched, transcode.started, transcode.failed |
| Accounts | user.created, user.login.succeeded, user.login.failed, user.profile.created, user.apikey.created |
| Requests | media.request.created, media.request.answered |
| Server | backup.created, backup.failed, plugin.installed, plugin.error, server.config.changed, transcoding.derived_cache_full (subtitle store below its free-space margin) |
A plugin that calls EmitEvent publishes plugin.event.<type>, which a
webhook on All events receives too.
Delivery. Each event is a JSON POST, with two headers:
X-Evey-Delivery: an identifier that stays the same across the retries of one delivery, so your receiver can ignore a duplicate;X-Evey-Signature:sha256=followed by the HMAC-SHA256 of the body, computed with the webhook's secret. Verify it with the same secret to know the request comes from your server. Without a secret, the signature proves nothing.
Each attempt waits up to 30 seconds for an answer. A delivery that fails is
retried after 1, 5 and 30 seconds. Every attempt is recorded; the history is
read through the API (ListWebhookDeliveries in the
Plugin API), not in the panel.
Only public addresses
A webhook URL must be http or https and point to a public address.
localhost, private and link-local addresses (192.168.x.x, 10.x.x.x,
172.16.x.x...), and a name that resolves to one, are refused when the
webhook is saved and again when the server connects. This keeps the
server from being used to reach your internal network; a receiver on your
local network needs a public address or a relay.
Call the server from a script¶
An API key lets a script call the server API without a password. Keys are created in Admin → API Keys → New API Key by an administrator, and belong to that administrator.
- The key is shown once, when it is created. Store it then; it cannot be displayed again, only revoked with Revoke.
- It acts as its owner, with administrator rights, within its scopes.
- Scopes restrict what the key can do:
| Scope | Allows |
|---|---|
media:read |
Reading media metadata |
media:write |
Modifying media and starting scans |
playback:read |
Reading playback state and history |
playback:write |
Controlling playback and progress |
users:read |
Reading users |
users:write |
Modifying users |
admin:read |
Reading administration activity and statistics |
admin:write |
Modifying administration settings |
A key created without any scope (All (legacy)) has full access on the non-administrative methods, like its owner, but administration methods always require their scope: a legacy key cannot reach them. Select the scopes a script needs.
The key goes in the Authorization header, with or without Bearer:
A key stops working at once when it is revoked, or when its owner is disabled. The endpoints themselves are listed in the Server API, with the other ways to authenticate.
